TIMKEN Bearing NCF2922VC3

Single-row, full-complement cylindrical roller bearings.Features include integral flanges on the inner and outer rings.Can manage axial loads in one direction and small axial displacement.The radial internal clearance (RIC) for the bearing assembly must be included when ordering the complete assembly.
Material: Bearing steels
In Stock:

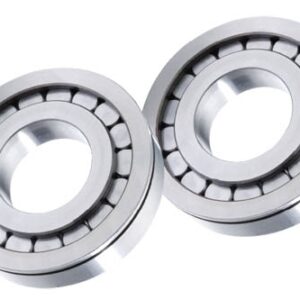

Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing NCF2922VC3

TIMKEN Bearing NCF2922VC3

Specifications

Bore d

110 mm

Static Load Rating Co

223000 N50100 lbf

Dynamic Load Rating C11

146000 N32900 lbf

Dimension S2

1.50 mm0.060 in

Geometry Factor Cg3

0.1360

Thermal Speed Ratings – Oil

1200 rpm

Thermal Speed Ratings – Grease

1000 rpm

Weight

1.2 Kg2.650 lb

Bearing Dimensions

O.D. D

150 mm5.9055 in

Width B

24 mm0.9449 in

DUR/DOR F/E

141.1 mm5.5551 in

Mounting Data

Chamfer rsmin

1.1 mm0.040 in

Chamfer r1smin4

1.0 mm0.040 in

Backing Shaft Diameter ds

119.1 mm4.6900 in

Backing Housing Diameter Ds

142.1 mm5.5900 in
