TIMKEN Bearing NCF2926VC3

Single-row, full-complement cylindrical roller bearings.Features include integral flanges on the inner and outer rings.Can manage axial loads in one direction and small axial displacement.The radial internal clearance (RIC) for the bearing assembly must be included when ordering the complete assembly.
Material: Bearing steels
In Stock:

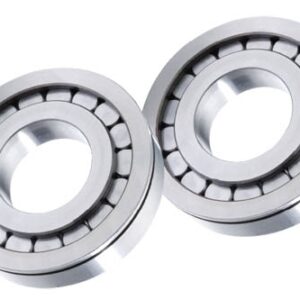

Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing NCF2926VC3

TIMKEN Bearing NCF2926VC3

Specifications

Bore d

130 mm

Static Load Rating Co

361000 N81100 lbf

Dynamic Load Rating C11

225000 N50600 lbf

Dimension S2

2.00 mm0.079 in

Geometry Factor Cg3

0.1600

Thermal Speed Ratings – Oil

1100 rpm

Thermal Speed Ratings – Grease

920 rpm

Weight

2.3 Kg5 lb

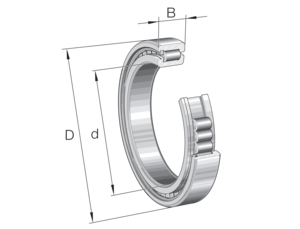

Bearing Dimensions

O.D. D

180 mm7.0866 in

Width B

30 mm1.1811 in

DUR/DOR F/E

166.8 mm6.5669 in

Mounting Data

Chamfer rsmin

1.5 mm0.06 in

Chamfer r1smin4

1.1 mm0.040 in

Backing Shaft Diameter ds

140.8 mm5.5400 in

Backing Housing Diameter Ds

167.5 mm6.5900 in
