TIMKEN Bearing NCF2928V

Single-row, full-complement cylindrical roller bearings.Features include integral flanges on the inner and outer rings.Can manage axial loads in one direction and small axial displacement.The radial internal clearance (RIC) for the bearing assembly must be included when ordering the complete assembly.
Material: Bearing steels
In Stock:

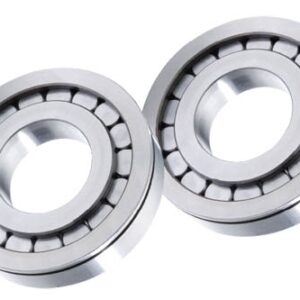

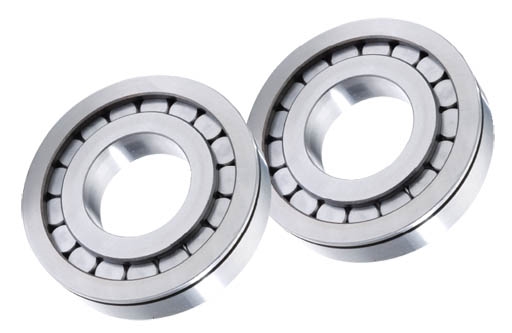

Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing NCF2928V

TIMKEN Bearing NCF2928V

Specifications

Bore d

140 mm

Static Load Rating Co

389000 N87300 lbf

Dynamic Load Rating C11

243000 N54700 lbf

Dimension S2

1.90 mm0.075 in

Geometry Factor Cg3

0.1670

Thermal Speed Ratings – Oil

1000 rpm

Thermal Speed Ratings – Grease

850 rpm

Weight

2.4 Kg5.3 lb

Bearing Dimensions

O.D. D

190 mm7.4803 in

Width B

30 mm1.1811 in

DUR/DOR F/E

179.6 mm7.0709 in

Mounting Data

Chamfer rsmin

1.5 mm0.06 in

Chamfer r1smin4

1.1 mm0.040 in

Backing Shaft Diameter ds

151.6 mm5.9700 in

Backing Housing Diameter Ds

180.2 mm7.100 in
