TIMKEN Bearing NCF2932V

Single-row, full-complement cylindrical roller bearings.Features include integral flanges on the inner and outer rings.Can manage axial loads in one direction and small axial displacement.The radial internal clearance (RIC) for the bearing assembly must be included when ordering the complete assembly.
Material: Bearing steels
In Stock:
Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing NCF2932V

TIMKEN Bearing NCF2932V

Specifications

Bore d

160 mm

Static Load Rating Co

540000 N121000 lbf

Dynamic Load Rating C11

340000 N76300 lbf

Dimension S2

2.20 mm0.087 in

Geometry Factor Cg3

0.1330

Thermal Speed Ratings – Oil

940 rpm

Thermal Speed Ratings – Grease

790 rpm

Weight

3.9 Kg8.700 lb

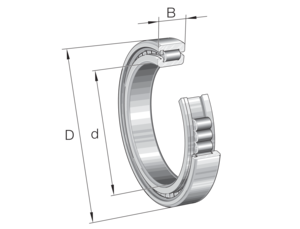

Bearing Dimensions

O.D. D

220 mm8.6614 in

Width B

36 mm1.4173 in

DUR/DOR F/E

207.2 mm8.1575 in

Mounting Data

Chamfer rsmin

2 mm0.08 in

Chamfer r1smin4

1.1 mm0.040 in

Backing Shaft Diameter ds

173.2 mm6.8200 in

Backing Housing Diameter Ds

208.5 mm8.2100 in
