TIMKEN Bearing NCF2976VC3

Single-row, full-complement cylindrical roller bearings.Features include integral flanges on the inner and outer rings.Can manage axial loads in one direction and small axial displacement.The radial internal clearance (RIC) for the bearing assembly must be included when ordering the complete assembly.
Material: Bearing steels
In Stock:

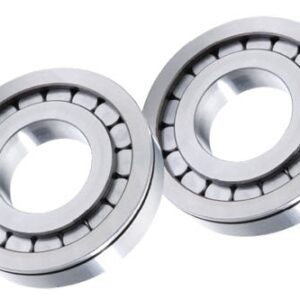

Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing NCF2976VC3

TIMKEN Bearing NCF2976VC3

Specifications

Bore d

380 mm

Static Load Rating Co

3360000 N756000 lbf

Dynamic Load Rating C11

1790000 N402000 lbf

Dimension S2

4.00 mm0.157 in

Geometry Factor Cg3

0.2280

Thermal Speed Ratings – Oil

310 rpm

Thermal Speed Ratings – Grease

270 rpm

Weight

52.80 Kg116.620 lb

Bearing Dimensions

O.D. D

520 mm20.4724 in

Width B

82 mm3.2283 in

DUR/DOR F/E

487.3 mm19.1850 in

Mounting Data

Chamfer rsmin

4 mm0.16 in

Chamfer r1smin4

4 mm0.160 in

Backing Shaft Diameter ds

411.3 mm16.1900 in

Backing Housing Diameter Ds

488.8 mm19.2400 in
