TIMKEN Bearing NCF2996V

Single-row, full-complement cylindrical roller bearings.Features include integral flanges on the inner and outer rings.Can manage axial loads in one direction and small axial displacement.The radial internal clearance (RIC) for the bearing assembly must be included when ordering the complete assembly.
Material: Bearing steels
In Stock:

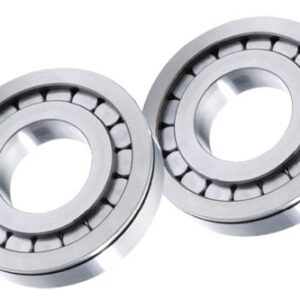

Photo may not represent actual item. See the technical specification for details.

Specifications of TIMKEN Bearing NCF2996V

TIMKEN Bearing NCF2996V

Specifications

Bore d

480 mm

Static Load Rating Co

4910000 N110000 lbf

Dynamic Load Rating C11

2570000 N579000 lbf

Dimension S2

6.00 mm0.236 in

Geometry Factor Cg3

0.2690

Thermal Speed Ratings – Oil

230 rpm

Thermal Speed Ratings – Grease

210 rpm

Weight

94.0 Kg207.500 lb

Bearing Dimensions

O.D. D

650 mm25.5906 in

Width B

100 mm3.937 in

DUR/DOR F/E

615.2 mm24.2205 in

Mounting Data

Chamfer rsmin

5 mm0.2 in

Chamfer r1smin4

5.0 mm0.200 in

Backing Shaft Diameter ds

519.2 mm20.4400 in

Backing Housing Diameter Ds

616.8 mm24.2800 in
