| D – Outer Diameter |
180 mm7.0866 in |
| C – Inner Ring Width |
34 mm1.3386 in |
| B – Outer Ring Width |
34 mm1.3386 in |
| C0 – Static Radial Rating |
311000 N69900 lbf |
| C – Dynamic Radial Rating1 |
280000 N62900 lbf |

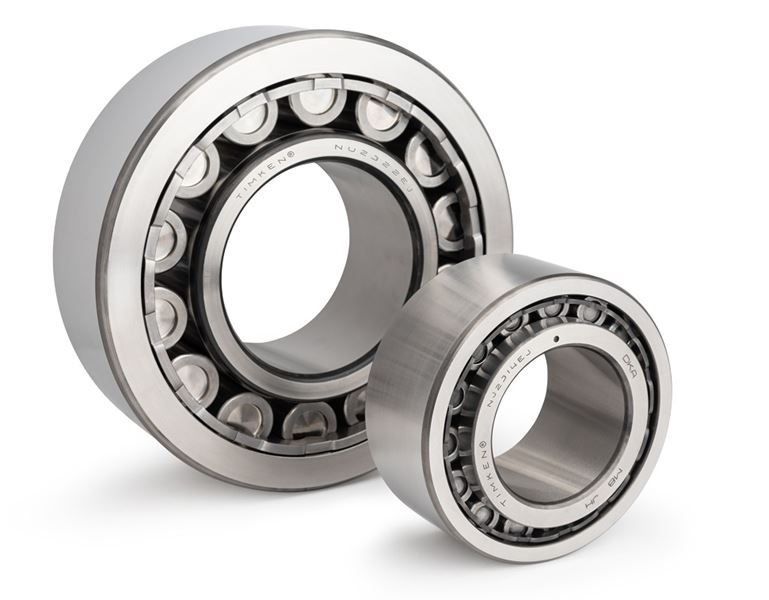

TIMKEN Bearing NJ220EJ, It belongs to TIMKEN Bearing > Cylindrical Roller Bearings > Cylindrical Roller Radial Bearings - Single Row ISO.Timken® single-row EMA series cylindrical roller bearings incorporate a unique cage design, proprietary internal geometry and special surface textures, available in a wide variety of size ranges and configurations.Minimize drag. Reduce heat. And perform better, for longer, with less maintenance and downtime. These are the true tests of any bearing. Our comprehensive line of single-, double- and multi-row Timken® cylindrical roller bearings helps extend equipment life and lower maintenance costs.
TIMKEN Bearing NJ220EJ,Cylindrical Roller Radial Bearings - Single Row ISO. N (RIN, RN)
These bearings carry radial load only and can accommodate both expansion and contraction. The relative axial displacement of one ring to the other occurs with minimum friction while the bearing is rotating. Type N bearings may be used in one or two positions for shaft support if other means of axial location are provided. The outer ring has a cylindrical bore without ribs and the inner ring incorporates two ribs.
Size range:
80 mm to 2000 mm OD
Design Attributes
Design has a cylindrical outer ring and two ribs on the inner ring, making type N bearings well suited for use as floating bearings.
Separable components simplify mounting and removal.
Accommodates axial expansion and contraction.
Provides axial displacement between rings with minimum friction while rotating.
Supports heavy radial loads.
Not suitable for applications with thrust loads.
TIMKEN Bearing NJ220EJ,Cylindrical Roller Radial Bearings - Single Row ISO. Applications
Cement making equipment such as crushers; vertical, ball and rolling mills; conveyor drives; gear reducers, spherical pillow blocks; trunnions and rotary kilns
Power generation equipment such as pulverizers, gearboxes and gear drives
Oilfield equipment such as mud pumps, draw-works, swivels, block hooks, crown blocks, traveling blocks and top drives
Timken offers standard and specially designed single-row cylindrical
roller bearings in a wide range of configurations and series for your application
requirements. Our EJ series steel cage bearings available in 65-150 mm bore sizes, are
part of our offering that includes brass cage and full-complement cylindrical roller
bearings.
You may also like TIMKEN Bearing NJ220EMA
